New Release of S3GRAF v9.1

S3GRAF provides functionality to quickly and efficiently visualise and analyse reservoir simulation data. Version 9.1 introduces the new Workflow Manager feature.

The Workflow Manager can capture a typical reservoir engineering task, to automate and standardise that task with a single click of a ‘Run’ button. Plotting, creating new quantities and performing 3D analyses can all be easily accomplished.

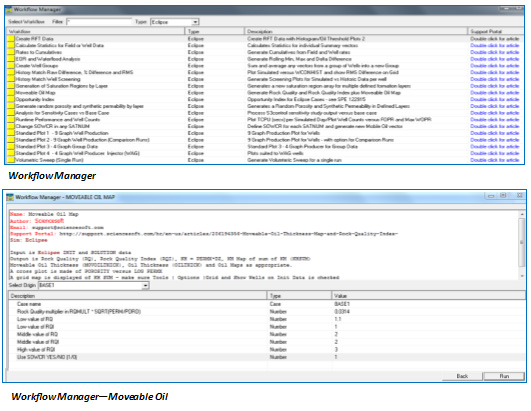

The Workflow Manager presents default workflows loaded with v9.1 in a navigable list containing a hyperlink to the relevant support portal article. Each article explains the workflow in full detail with screenshots.

The user can then select a workflow and edit the input parameters or well filters etc, based on the loaded data.

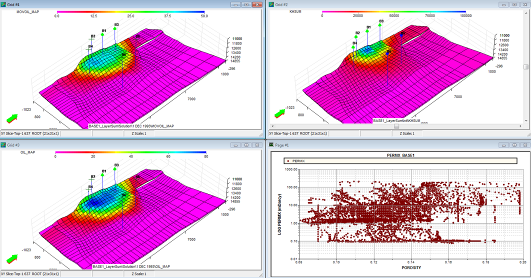

Simply select and press ‘Run’ for the Moveable Oil Map workflow and the relevant new quantities are created e.g. along with 3 grid displays (Oil, Moveable Oil, KH SUM) and a cross plot of Poro v Perm are created.

Other new features include:

• New User Functions
• Create RFT Data based on Solution Data Perforation Locations
• RFT Layer Lines to label formation names and depths on any RFT plot
• New Statistical Calculations and Export Option for P10 P50 P90  ranking of ensemble curves
• Improved Eclipse H5 File Support
• VIP/Nexus ALIAS File Support Extended
• UTCHEM/UTCOMP Corner Point Grid Support
• Graph Search with Completions Indices

Sciencesoft support engineers will work with our customers to create custom workflows for company use, for instance, preferred standard plots.

Our support engineers can quickly create new workflows when customers make a request. Please email support@sciencesoft.com for further information.
